Product Display

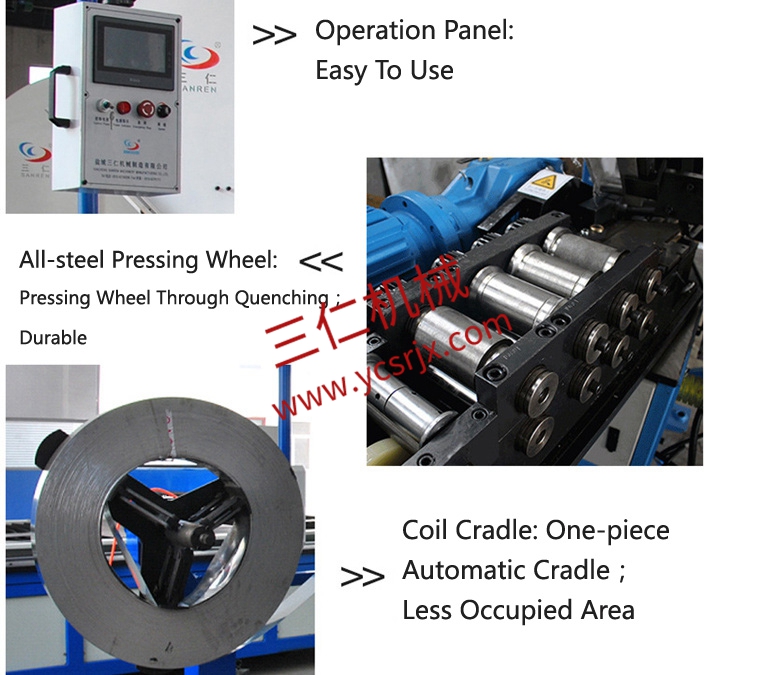

Full-automatic Spiral Wind Pipe Machine(SRTF-1500)

Type SRTF-1500 Tube Diameter 80mm-1500mm Panel Thickness 0.4-1.2mm(Galvanized Plate) 0.4-0.8mm(Stainless Steel) Tube Length 100mm-20000mm Processing Speed 1m-36m/min Uncoiler Vertical:Inside-Roll 450mm-500mm Outside-Roll 1500mm Maximum Load :1500KG Seaming Types Outside Seaming; Inside Seaming according to Customer Demand Mould Steel Strip; fixed Mould; Three-point Adjust Motor Power 5.5KW/380V Cutting Power 4KW/380V Cutting Ways Sawing, Rolling-shear Strip Width 137mm-140mm Electronic Control System Computer PLC Control Pneumatic Power 0.5-0.7Mpa Mains Voltage 380V/50Hz Dimension 3200mm*2100mm*2650mm Weight 2200KG
